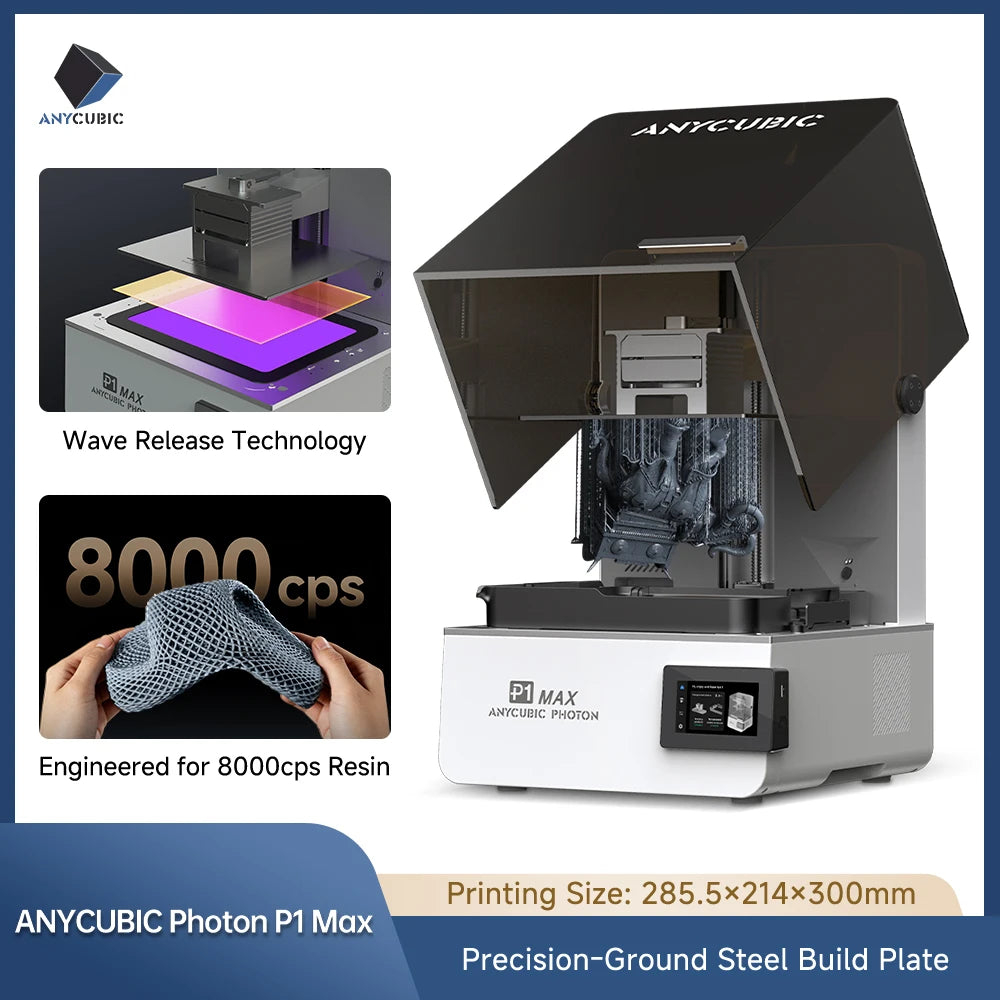

ANYCUBIC Photon P1 Max 12K Mono LCD 3D Printer Full-Scale 18.3L Print Volume Intelligent Printing Assistant UV Resin 3D Printer

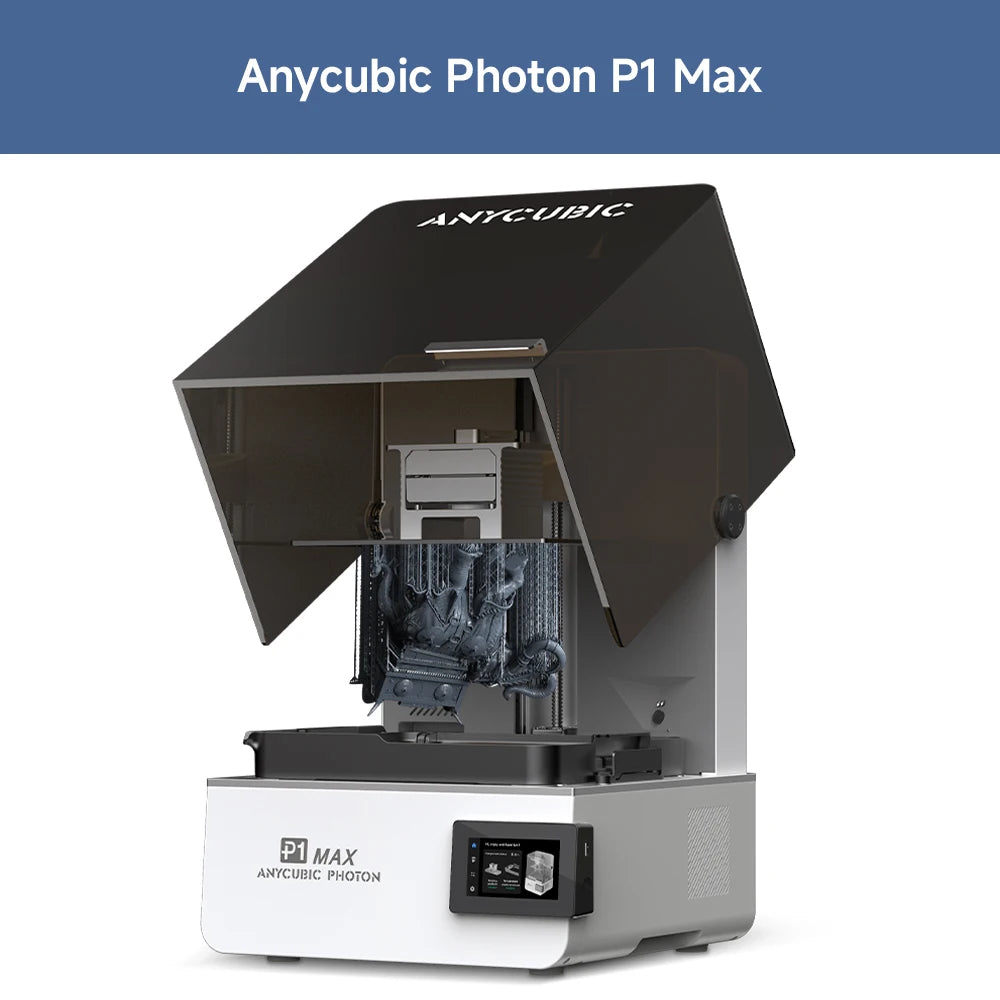

Anycubic Photon P1 Max

Scale. In Full.

Parameter Comparison

Print Outside the Scale

Bigger Volume

The Anycubic Photon P1 Max features a massive 18.3L full-scale build volume.

Higher Productivity

Exponential boost in batch production efficiency.

Silky, Smooth

The high-resolution 14-inch 12K (11520 × 8640 px) screen and 24.8×24.8μm square pixels combination eliminates jagged edges for smooth, aliasing-free surfaces on every model.

Tolerance Down to the Width of a Human Hair

Precision-ground steel build plate surface roughness tolerance＜80μm

Screen surface roughness tolerance＜70μm

‌Ambient UVA Blocking Rate: ＞99.99%.

C7-Grade Ball Screw

The Anycubic Photon P1 Max utilizes C7-grade ball screws and linear guide rails, achieving a remarkable repeat positioning accuracy of ±0.01mm. This robust motion control system provides a rock-solid foundation, ensuring stable operation and print precision.

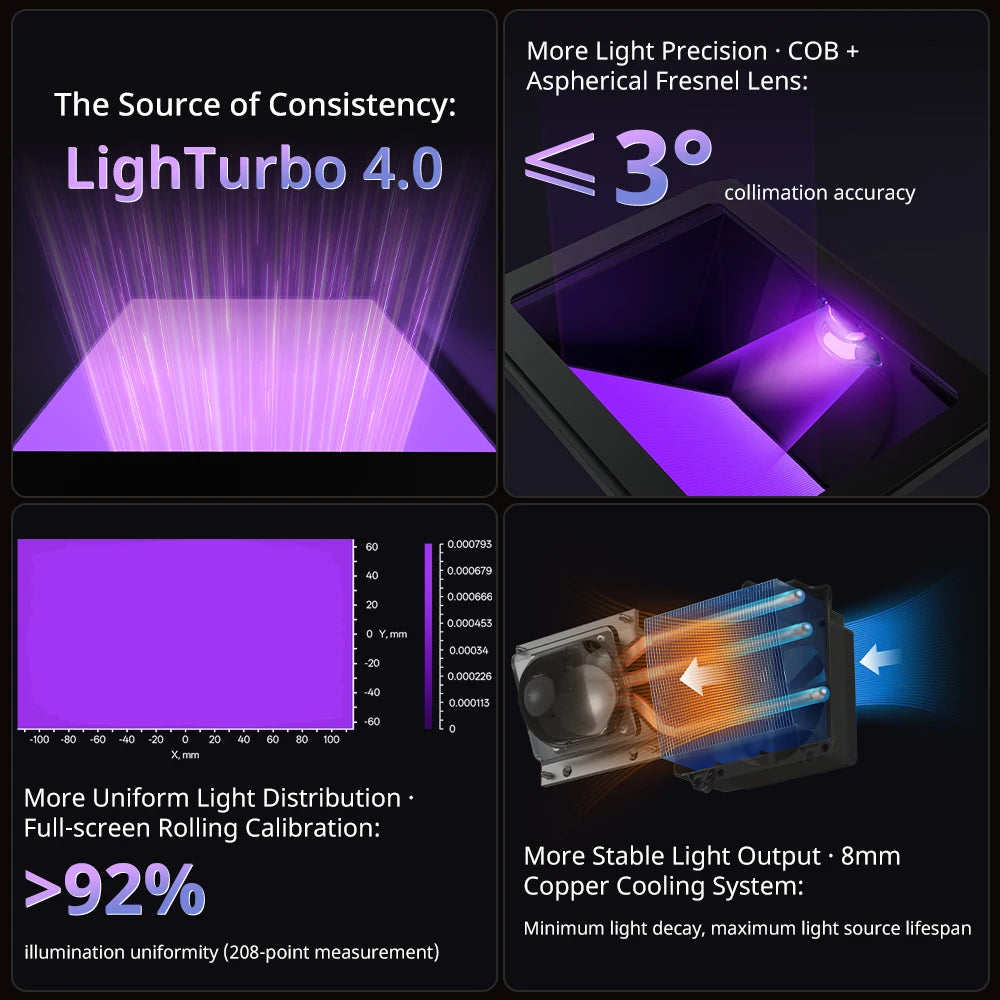

The Source of Consistency: LighTurbo 4.0

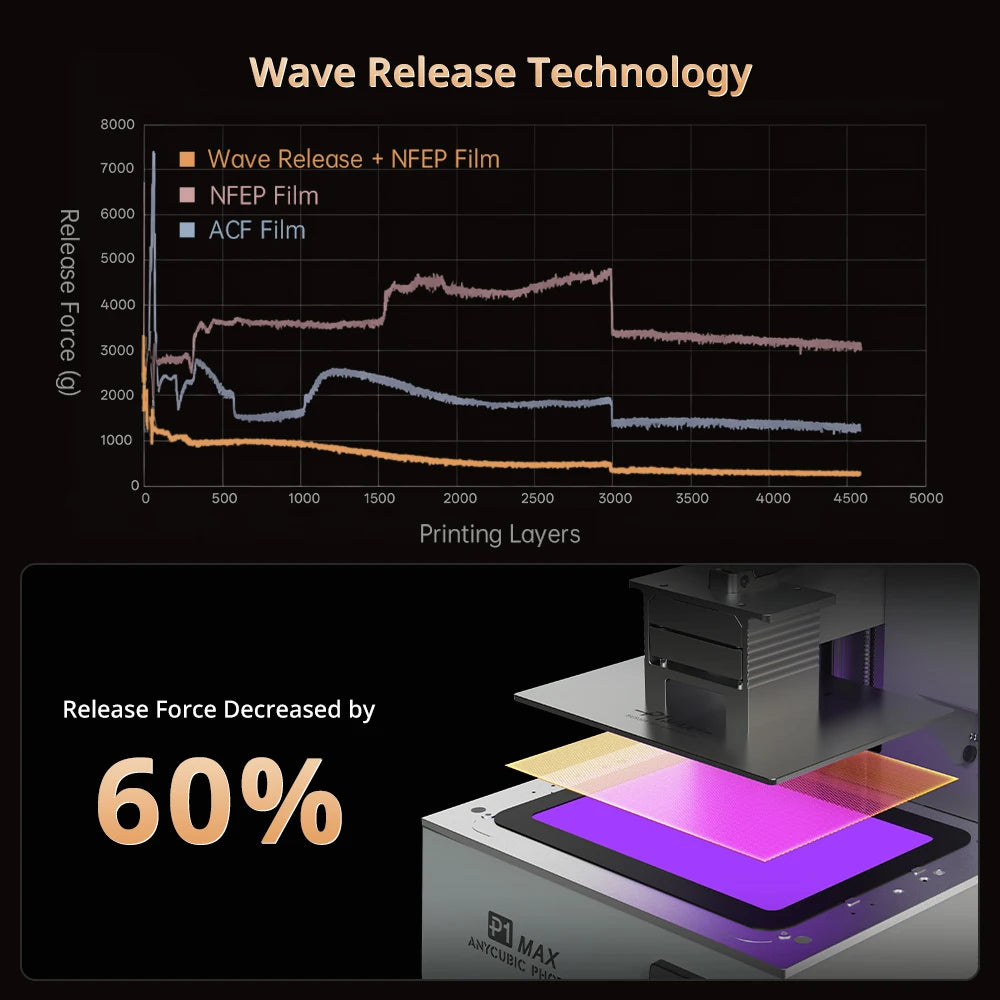

Wave Release Technology

Wave Release Technology reduces release force by 60% during the lift cycle compared to standard smooth NFEP films. This leads to faster and more reliable print cycles.

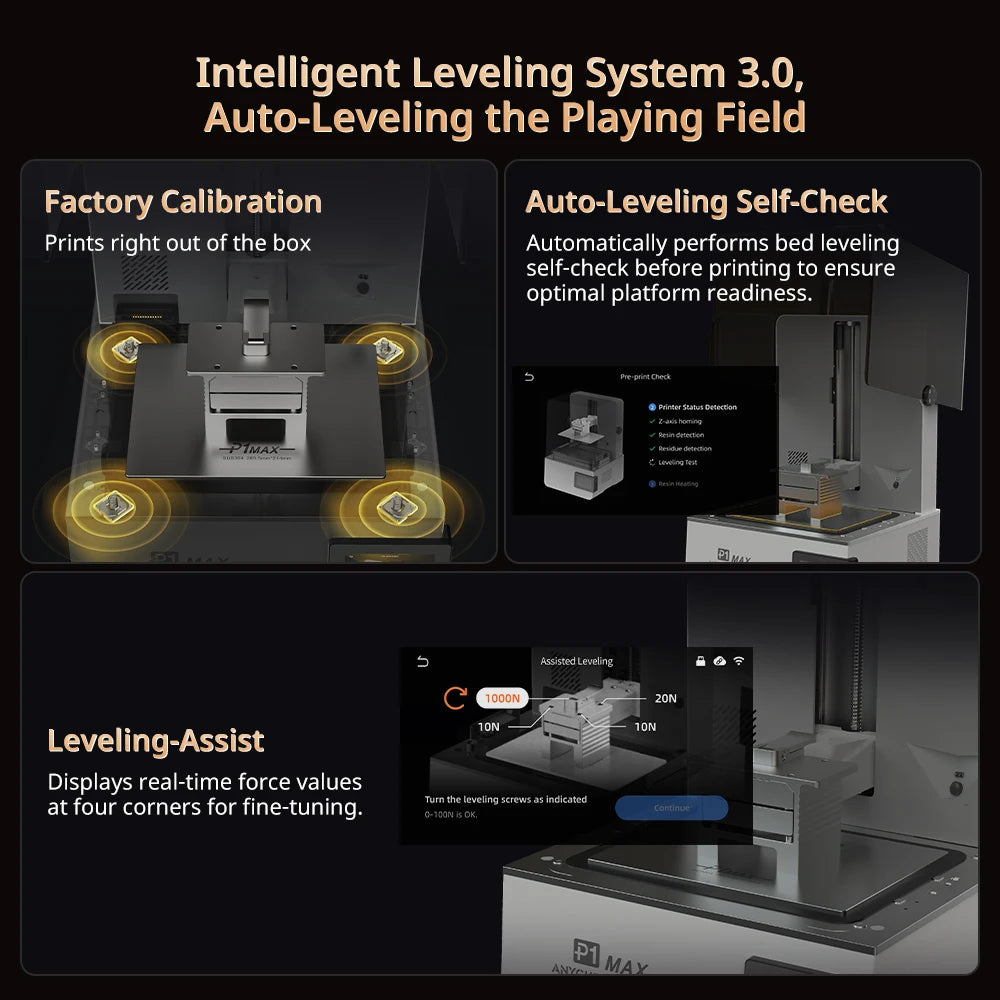

Intelligent Leveling System 3.0, Auto-Leveling the Playing Field

① Factory‌ Calibration - Prints right out of the box

② ‌Auto-Leveling Self-Check‌ - Automatically performs bed leveling self-check before printing to ensure optimal platform readiness.

③ ‌Leveling-Assist - Displays real-time force values at four corners for fine-tuning.

Intelligent Dynamic Adjustment, Fast & Steady Wins the Race

Intelligent & AI Inspection[2]: Double-Checked

-Build plate installation inspection, Ai detection

-Bottom layer separation inspection, Ai detection

-Resin level inspection

-Residue inspection

×AI detection: Disabled by default. Enabling this feature triggers video recording warning.

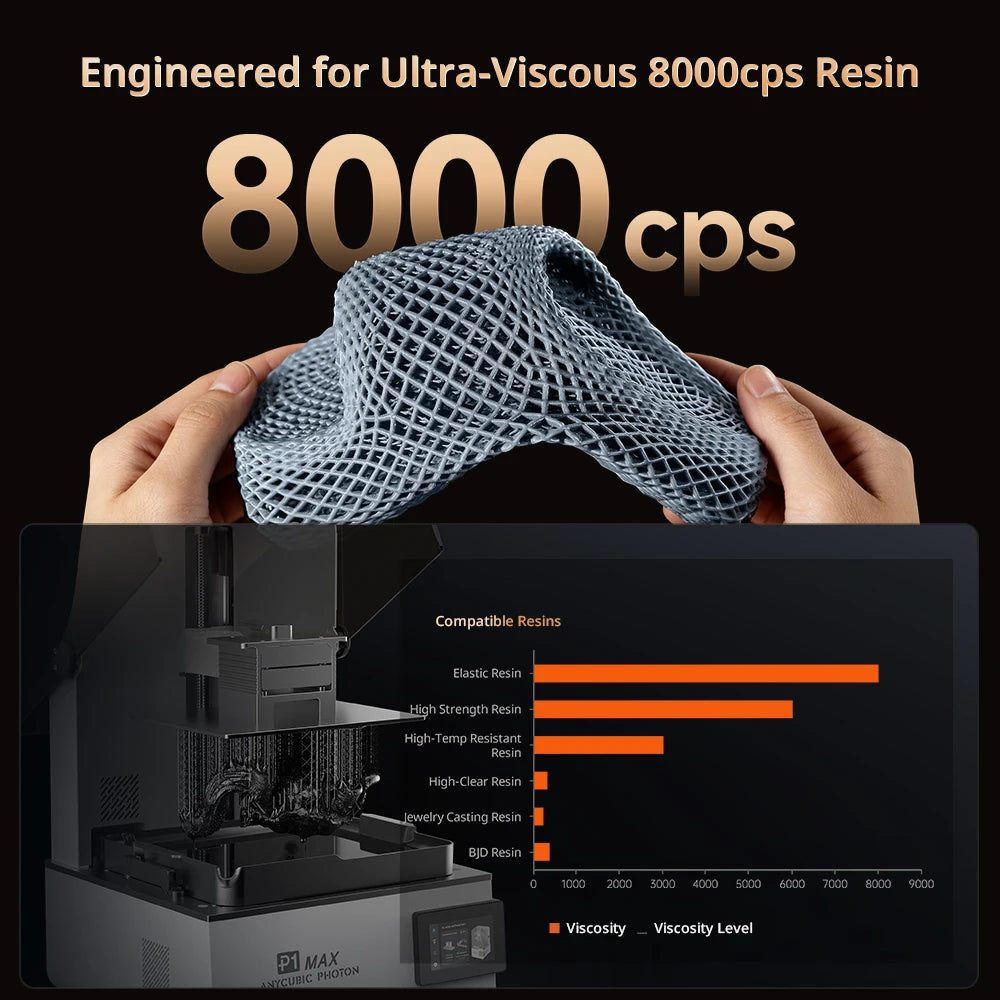

Engineered for Ultra-Viscous 8000cps Resin

Pre-loaded with optimized profiles for all Anycubic resins[3] – no calibration needed.

Optimal Resin Flow: 1900ml Thermal-Controlled Resin Vat[4]

Featuring a 1.9L ultra-large thermal-controlled vat, this system supports 300mm models in a single print cycle. By actively maintaining a constant resin temperature of up to 35 °C, it ensures optimal viscosity for maximum success rate.

7 User-Friendly Upgrades, It's the Small Things that Matter

Resin Drip Hanger | Stepless Hinged Lid | Quick-Release Build Plate & Resin Vat | ‌≤45 dB Quiet Printing | Quick-Release Exposure Screen | Improved Pouring Spout | Support Air Pure 2.0（It needs to be purchased separately)

The All-New Photon Workshop 4.0

‌Intelligent One-Click Slicing‌ ‌| Improved Auto-Support Algorithm ‌| Custom Support Painting‌ ‌| Remote Operation‌ | Network Connectivity‌

Makeronline, One of the Biggest Online Model Libraries

‌Massive Model Library‌ | Monetize Your Designs‌ | Global Knowledge Exchange‌ | AC Wiki Troubleshooting Expert‌

Product Overview

Tech Specs

Packing List

FQA:

How large can I print with the Photon P1 Max?

The Photon P1 Max offers a massive 18.3L full-scale build volume, allowing you to produce large models or maximize batch production in a single print cycle. Combined with its 1.9L thermal-controlled resin vat, it supports models up to 300mm tall while maintaining consistent resin viscosity for higher success rates and improved productivity.

How does the Photon P1 Max achieve silky-smooth, ultra-detailed prints?

Equipped with a 14-inch 12K screen (11520 × 8640 px) and 24.8 × 24.8 μm square pixels, the P1 Max eliminates jagged edges and visible layer artifacts.

What ensures long-term precision and mechanical stability in the Photon P1 Max?

The Photon P1 Max utilizes C7-grade ball screws and linear guide rails, achieving an impressive repeat positioning accuracy of ±0.01 mm. . This robust motion control system provides a rock-solid foundation, ensuring stable operation and print precision.

What features make the Photon P1 Max easy to use?

Factory calibration — Ready to print out of the box.

Auto-Leveling Self-Check — Automatically performs bed leveling self-check before printing to ensure optimal platform readiness.

Leveling-Assist — Displays real-time force values at four corners for
fine-tuning.

With dual-network connectivity (Wi-Fi + Ethernet), remote monitoring via the Anycubic App, and compatibility with ultra-viscous 8000cps resins, the Photon P1 Max delivers a seamless, intelligent, and production-ready experience.
